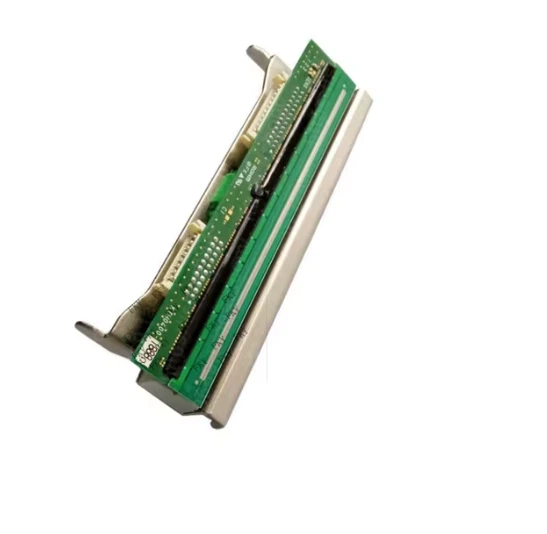

Here is a table presenting the product characteristics of the original Toshiba EX4T3 – HS print head:
| Characteristics | Details |
|---|---|
| Resolution | 600 dpi (24 dots per millimeter) |
| Printing Speed | Up to 6 inches per second (152.4 mm/s) |
| Printing Positioning Accuracy | At a printing speed of 2 ips, ±0.3 mm in the printing direction and ±0.4 mm in the horizontal direction. It can support the printing of labels as small as 3 mm in height. |
| Print Head Type | Flat – type, with a “clamp – type” design. Users can replace it by themselves without the need for tools. |
| Media Alignment | Centered alignment |
| Font Library | Comes with the GB18030 font library as standard |
| Memory | 32 MB SDRAM, 16 MB Flash |
| Control Functions | Dual – ribbon motor control and automatic temperature control to reduce the occurrence of ribbon wrinkles |
| Interfaces | Standard interfaces include USB2.0, Ethernet, serial port, and USB Host/real – time clock. Optional interfaces include parallel port and expansion I/O. |
