| Parameter | Specification |
|---|---|
| Model Number | 98-0470023-00LF |
| Compatibility | TSC TTP-344mPro Barcode Printer |
| Print Technology | Thermal Transfer & Direct Thermal (Dual Mode) |
| Resolution | 300 dpi (standard commercial grade) |
| Print Width | 104 mm (4.09 inches) |
| Printhead Type | Flathead design with industrial ceramic elements |
| Dot Density | 832 dots/line |
| Lifespan | 100-150 km (depends on ribbon/media usage) |
| Operating Voltage | 24V DC |
| Media Compatibility | Paper/synthetic labels (direct thermal) & ribbon-based thermal transfer media |
| Max Print Speed | 12 ips (inches per second) |
| Element Resistance | 5.0Ω ±10% |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Cleaning Method | TSC cleaning pen (PN: 9C-010) or 99% isopropyl alcohol |
| Certifications | RoHS, CE compliant; TSC OEM standard |
| Warranty | 12 months (manufacturer defects) |
Sold out

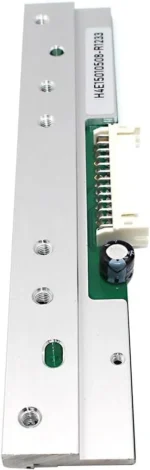

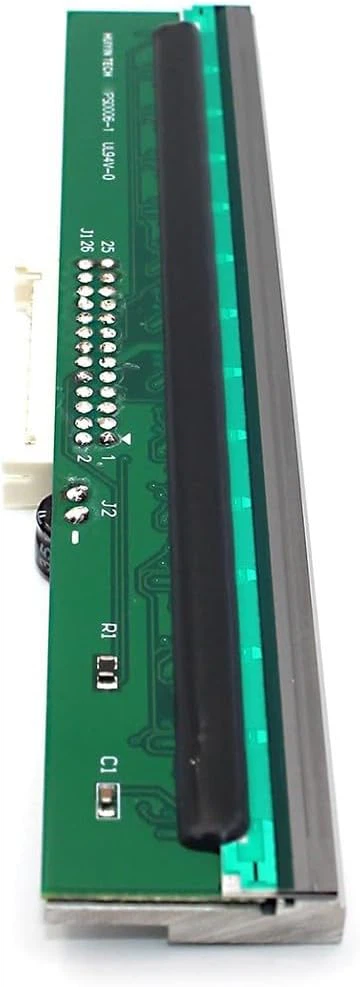

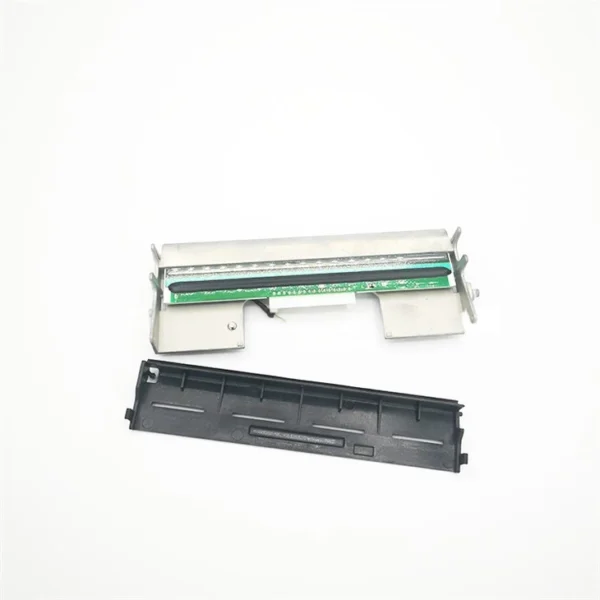

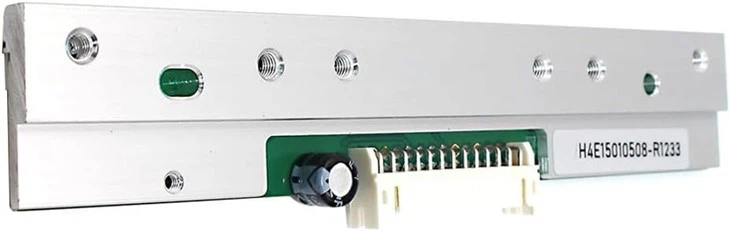

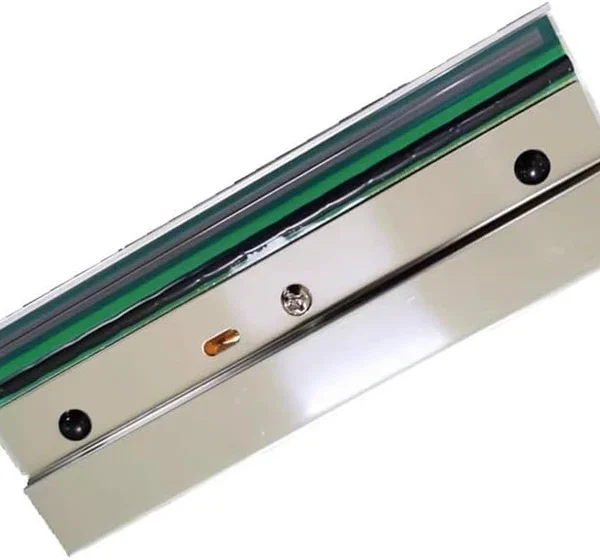

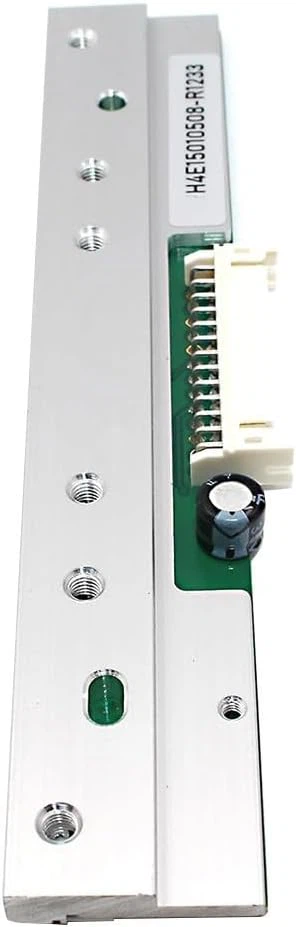

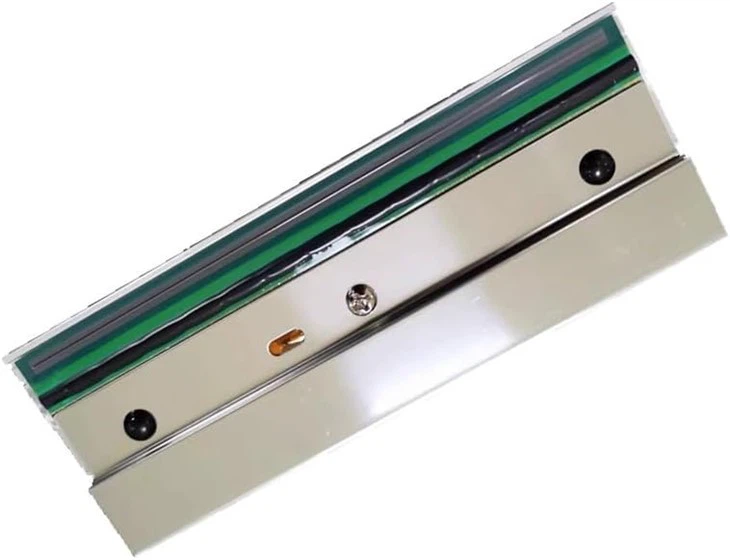

TTP-344mPro 300dpi 98-0470023-00LF Print Head
TSC THERMAL PRINTER HEAD
COMPATIBILITY:for TSC TTP-344MPRO Printer
RESOLUTION:300dpi
P/N:98-0470023-00LF
₹9,999.00
Out of stock
Out of stock
