| Parameter | Specification |
|---|---|
| Part Number | 98-0470024-00LF |
| Compatibility | TSC TTP-644M Plus, TTP-644MPro |
| Print Method | Direct Thermal / Thermal Transfer |
| Resolution | 24 dots/mm (600 dpi) |
| Print Width | 104mm (4.09 inches) |
| Number of Dots | 2496 dots (24 dots/mm × 104mm) |
| Dot Resistance | ~50–150Ω (typical range) |
| Operating Voltage | 24V DC (±10%) |
| Maximum Current | ~1.5–2.0A (depends on print density) |
| Print Speed | Up to 300 mm/s (printer-dependent) |
| Duty Cycle | 24/7 Industrial Operation |
| Interface Type | Flexible PCB (FPC) connector |
| Connector Pin Count | 16–18 pins (verify with printer manual) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Material | Ceramic substrate with wear-resistant coating |
| Lifespan | ~100–150 km (varies with media and usage) |
| Weight | Approx. 110–130g |
Sold out

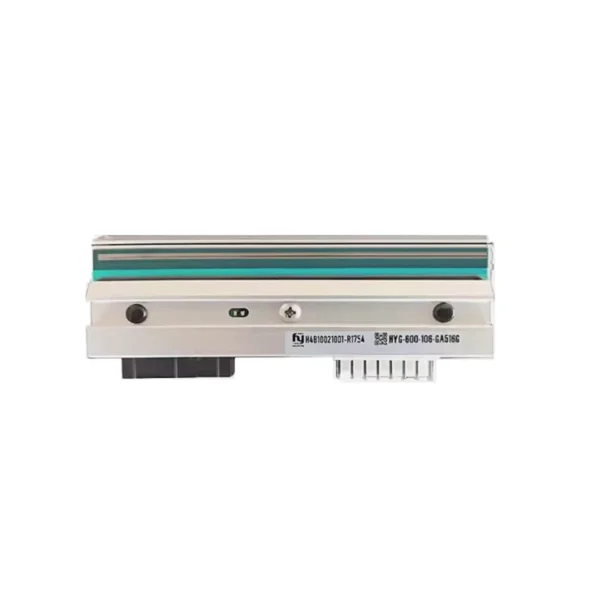

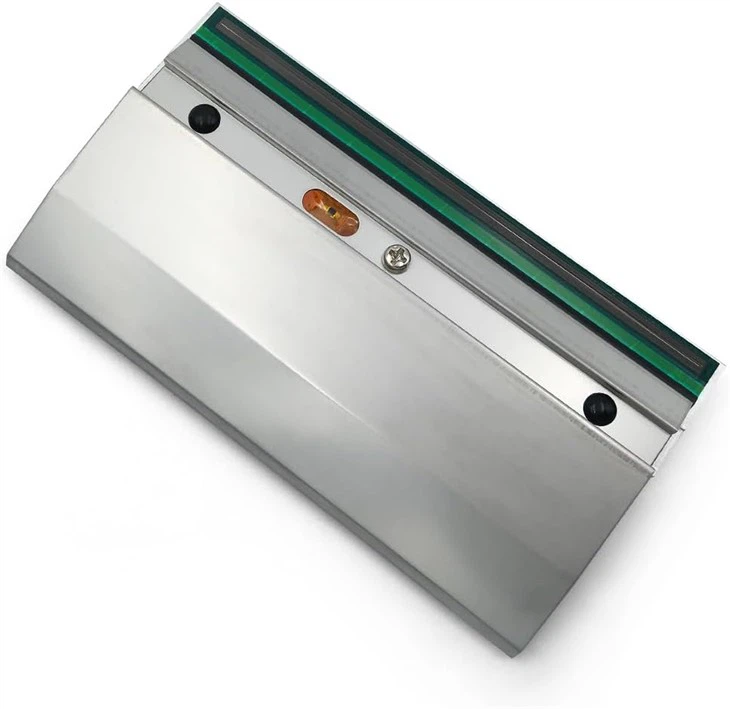

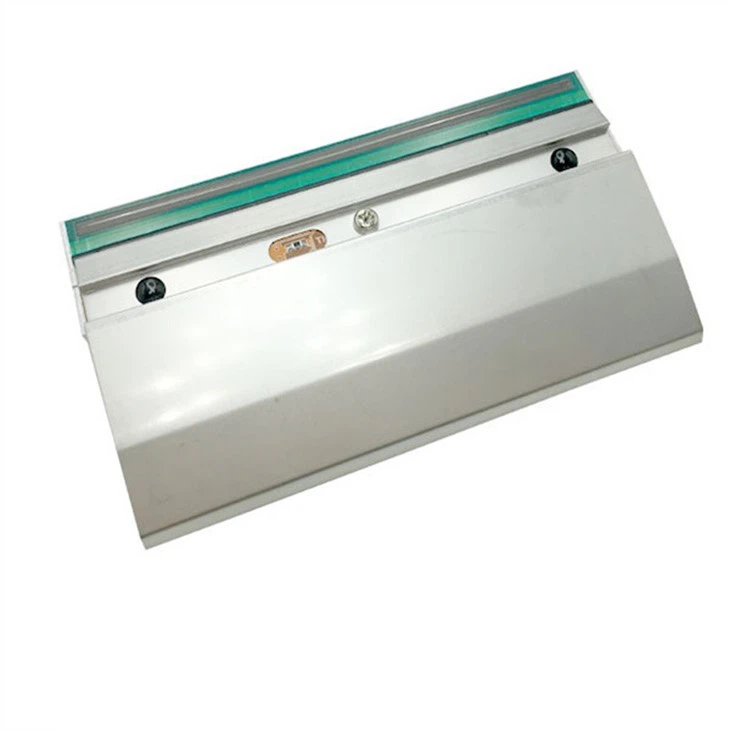

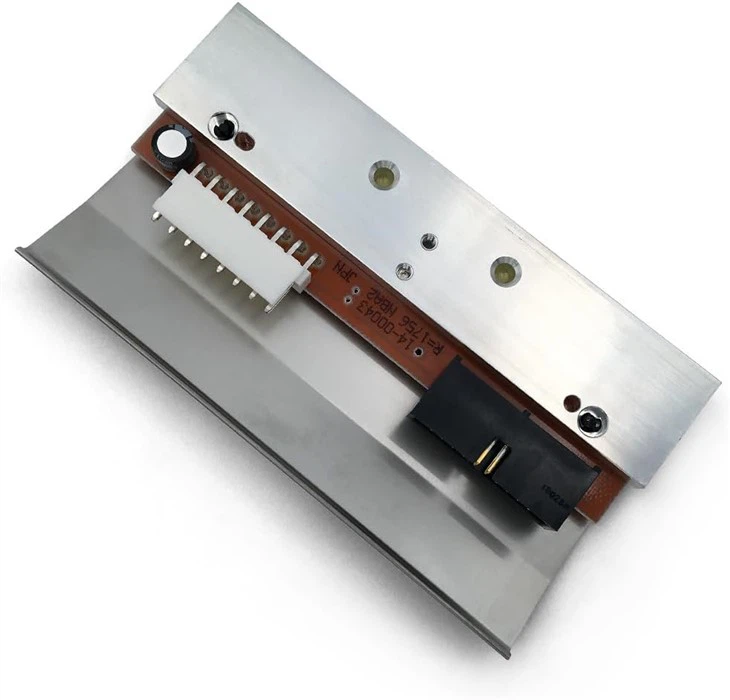

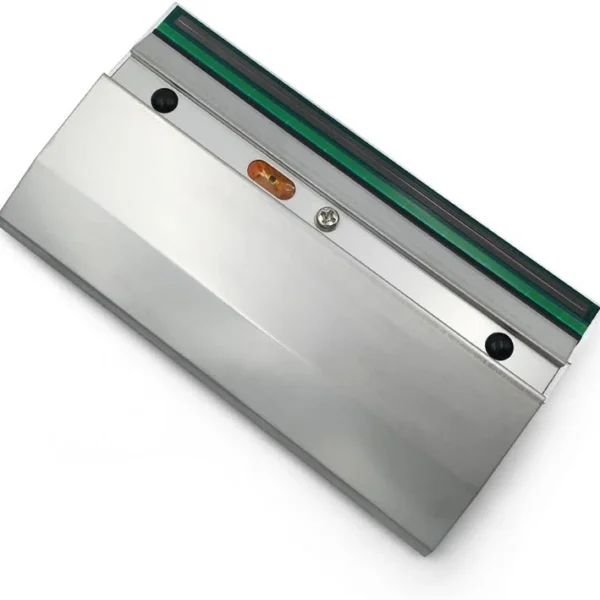

TSC TTP-644M Plus TTP-644MPro Thermal Printer 600dpi Genuine 98-0470024-00LF
TSC THERMAL PRINTER HEAD
COMPATIBILITY:for TSC TTP-644 Series Printer
RESOLUTION:600dpi
P/N:98-0470024-00LF
₹9,999.00
Out of stock
Out of stock
