| Parameter | ​Specification |
|---|---|
| ​Part Number | 98-0410008-00LF (Genuine OEM) |
| ​Compatibility | TSC TTP-2610MT Wide Barcode Printers |
| ​Print Method | Direct Thermal / Thermal Transfer |
| ​Resolution | 8 dots/mm (203 dpi) |
| ​Print Width | 168mm (6.6 inches) – Wide Format |
| ​Number of Dots | 1344 dots (8 dots/mm × 168mm) |
| ​Dot Resistance | ~100–200Ω (typical range) |
| ​Operating Voltage | 24V DC (±10%) |
| ​Maximum Current | ~1.2–1.5A (depends on print conditions) |
| ​Print Speed | Up to 300 mm/s (printer-dependent) |
| ​Duty Cycle | 24/7 Industrial Operation |
| ​Interface Type | Flexible PCB (FPC) connector |
| ​Connector Pin Count | 16–18 pins (verify with printer manual) |
| ​Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| ​Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| ​Material | Ceramic substrate with protective coating |
| ​Lifespan | ~100–150 km (varies with media and usage) |
| ​Weight | Approx. 120–150g |
Sold out

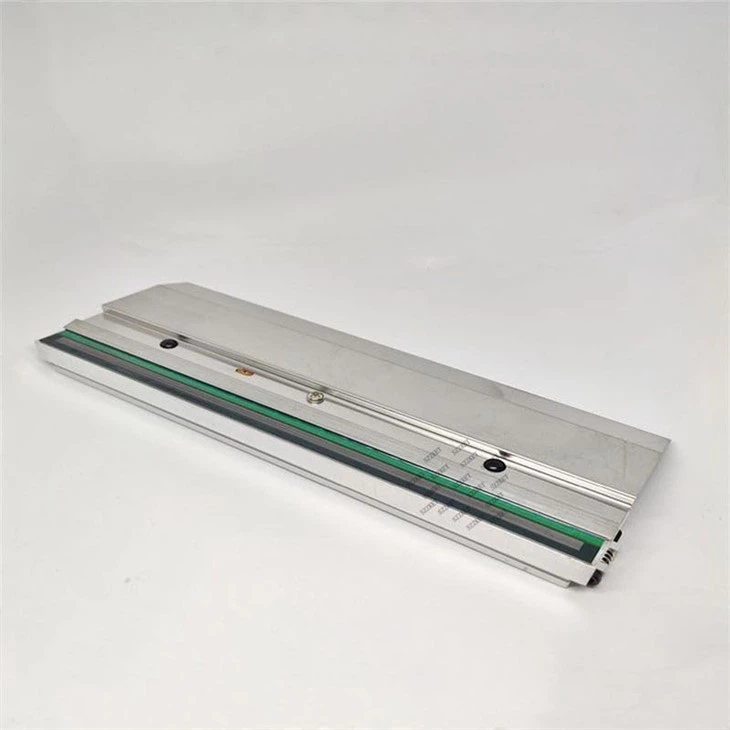

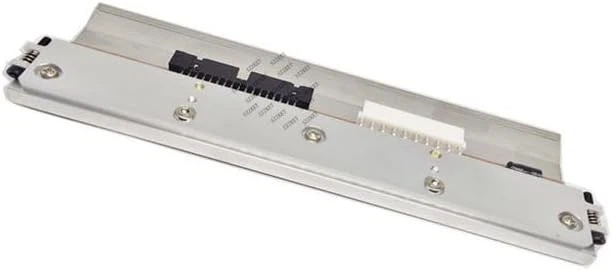

TSC TTP-2610MT 98-0410008-00LF
TSC THERMAL PRINTER HEAD
COMPATIBILITY:for TSC TTP-2610 Series Printer
RESOLUTION:203dpi
P/N:98-0410008-00LF
₹9,999.00
Out of stock
