| Parameter | Specification |
|---|---|
| Part Number | 98-0470020-00LF (Genuine OEM) |
| Compatibility | TSC TTP-245 Plus, TTP-247 Thermal Printers |
| Print Method | Direct Thermal / Thermal Transfer |
| Resolution | 8 dots/mm (203 dpi) |
| Print Width | 104mm (4.09 inches) |
| Number of Dots | 832 dots (8 dots/mm × 104mm) |
| Dot Resistance | ~100–200Ω (typical range) |
| Operating Voltage | 24V DC (±10%) |
| Maximum Current | ~1.0–1.2A (depends on print conditions) |
| Print Speed | Up to 300 mm/s (printer-dependent) |
| Duty Cycle | Continuous (industrial-grade durability) |
| Interface Type | Flexible PCB (FPC) connector |
| Connector Pin Count | 14–16 pins (verify with printer manual) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Material | Ceramic substrate with protective coating |
| Lifespan | ~100–150 km (usage-dependent) |
| Weight | Approx. 80–100g |
Sold out
TSC TTP-247 TTP-245PLUS Thermal Label Printer 203dpi

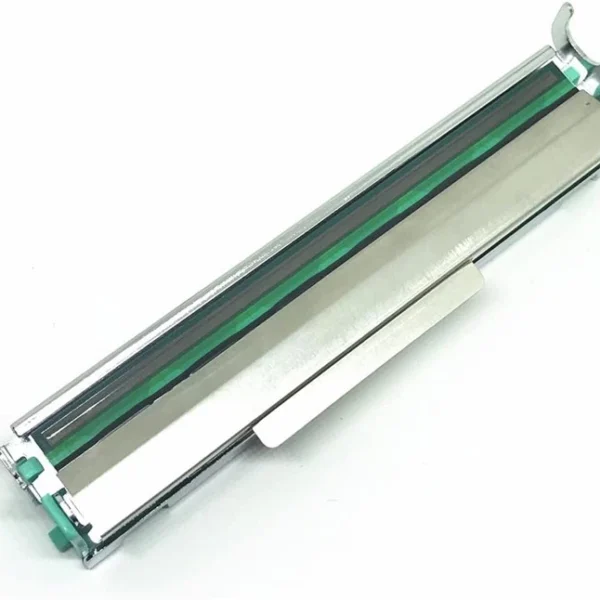

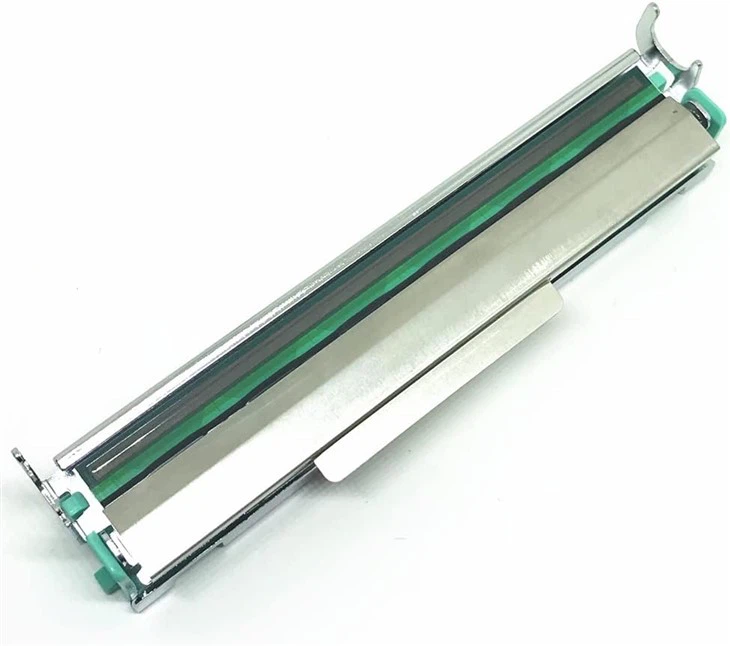

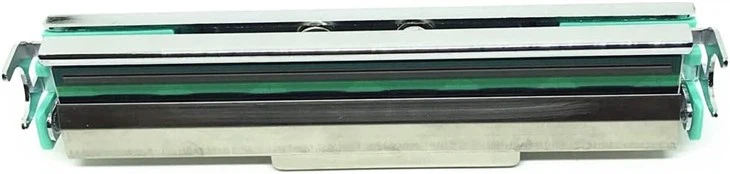

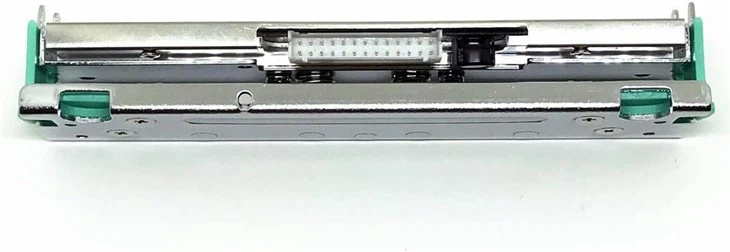

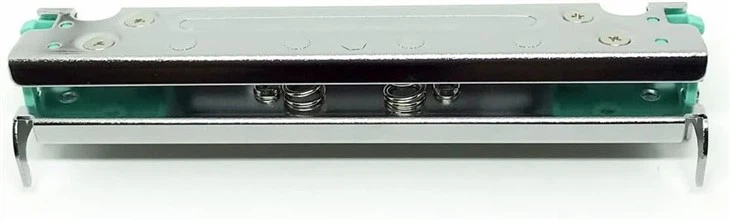

TSC THERMAL PRINTER HEAD
COMPATIBILITY:for TSC TTP-245 TTP-247 Series Printer
RESOLUTION:203dpi
P/N:98-0470020-00LF
₹9,999.00
Out of stock
Out of stock
