| ​Parameter | ​Specification |
|---|---|
| ​Part Number | 98-0800022-01LF |
| ​Compatibility | TSC ML240, MA2400 Series Barcode Printers |
| ​Print Method | Direct Thermal / Thermal Transfer |
| ​Resolution | 8 dots/mm (203 dpi) |
| ​Print Width | 104mm (4.09 inches) |
| ​Number of Dots | 832 dots (8 dots/mm × 104mm) |
| ​Dot Resistance | ~100–200Ω (typical range) |
| ​Operating Voltage | 24V DC (±10%) |
| ​Maximum Current | ~0.8–1.2A (depends on print conditions) |
| ​Print Speed | Up to 300 mm/s (printer-dependent) |
| ​Duty Cycle | Continuous (industrial-grade durability) |
| ​Interface Type | Flexible PCB (FPC) connector |
| ​Connector Pin Count | 14–16 pins (verify with printer manual) |
| ​Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| ​Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| ​Material | Ceramic substrate, wear-resistant coating |
| ​Lifespan | ~100–150 km (varies with media and |
Sold out

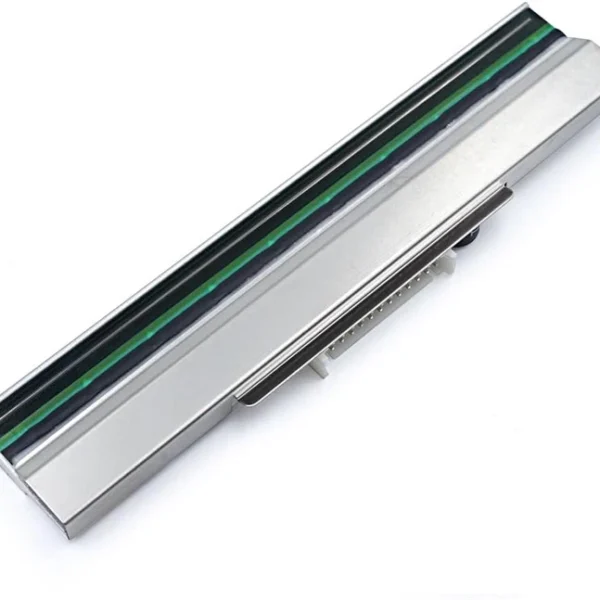

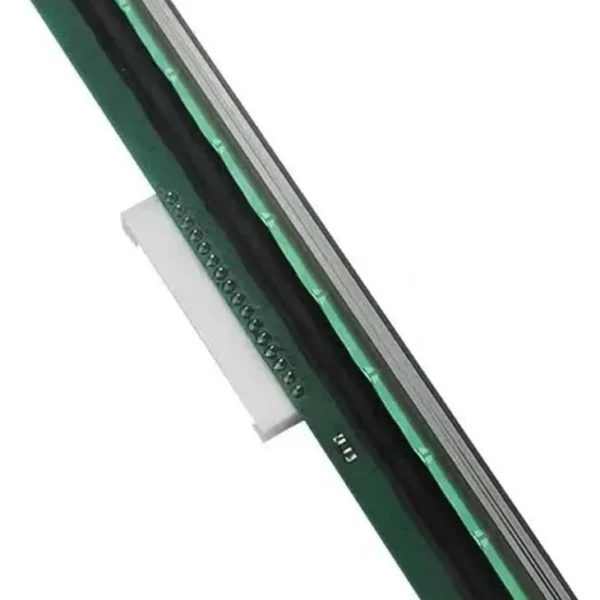

TSC ML240 MA2400 Barcode Printhead 98-0800022-01LF
TSC THERMAL PRINTER HEAD
COMPATIBILITY:for TSC ML240 MA2400 Series Printer
RESOLUTION:203dpi
P/N:98-0800022-01LF
₹9,999.00
Out of stock
Out of stock
