| ​Parameter | ​Specification |
|---|---|
| ​Part Number | 98-0680031-01LF |
| ​Compatibility | TSC MB340, MF3400 Series Thermal Printers |
| ​Print Method | Direct Thermal / Thermal Transfer |
| ​Resolution | 12 dots/mm (300 dpi) |
| ​Print Width | 104mm (4.09 inches) |
| ​Number of Dots | 1248 dots (12 dots/mm × 104mm) |
| ​Dot Resistance | ~100–200Ω (typical range) |
| ​Operating Voltage | 24V DC (±10%) |
| ​Maximum Current | ~1.2–1.5A (depends on print conditions) |
| ​Print Speed | Up to 300 mm/s (printer-dependent) |
| ​Duty Cycle | 24/7 Continuous Operation |
| ​Interface Type | Flexible PCB (FPC) connector |
| ​Connector Pin Count | 14–16 pins (verify with printer manual) |
| ​Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| ​Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| ​Material | Ceramic substrate with protective coating |
| ​Lifespan | ~150–200 km (varies with media and usage) |
| ​Weight | Approx. 90–110g |
Sold out

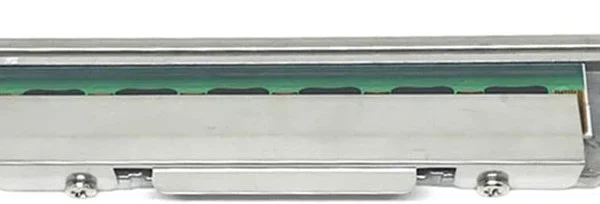

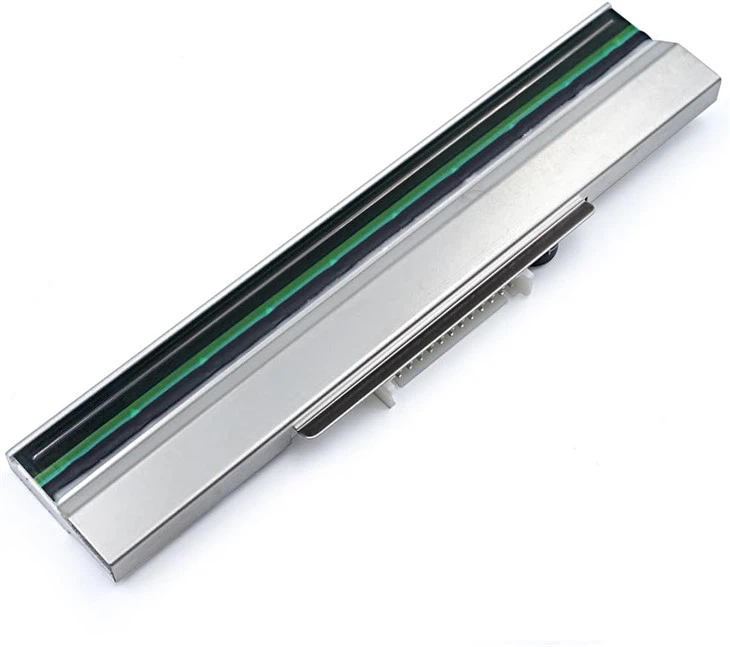

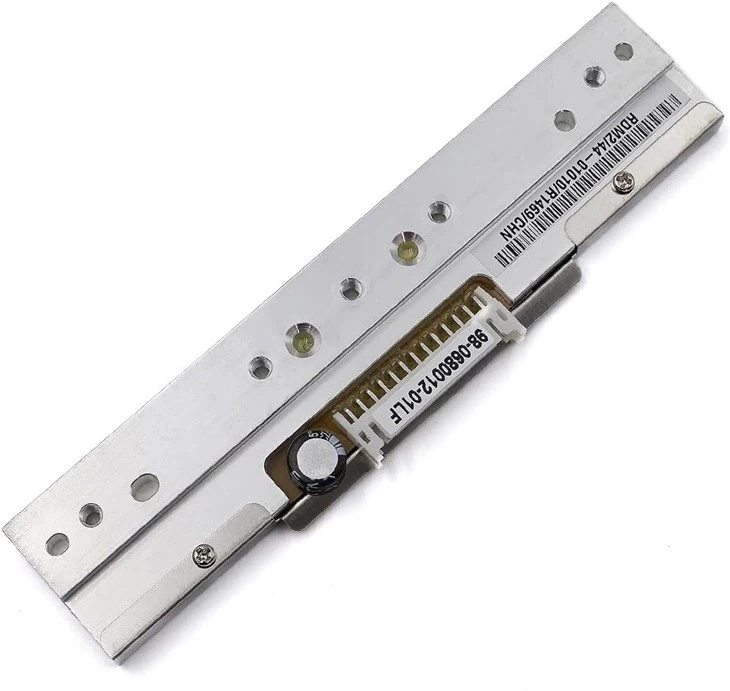

TSC MB340 MF3400 Thermal Barcode Label Printer 300dpi 98-0680031-01LF
TSC THERMAL PRINTER HEAD
COMPATIBILITY:for TSC MB340 MF3400 Series Printer
RESOLUTION:300dpi
P/N:98-0680031-01LF
₹9,999.00
Out of stock
Out of stock
