Parameter | Specification |
---|---|
Model Number | 98-0800022-01LF |
Compatibility | TSC MB240, MF2400 Series Thermal Printers |
Print Method | Direct Thermal / Thermal Transfer |
Resolution | 203 dpi (8 dots/mm) |
Print Width | 104mm (4.09 inches) |
Number of Dots | 832 dots (8 dots/mm × 104mm) |
Dot Density | 203 dpi (horizontal × vertical) |
Resistance per Dot | ~100–200Ω (typical range) |
Operating Voltage | 5V DC or 24V DC (verify printer manual) |
Maximum Current | ~0.8–1.2A (depends on print conditions) |
Print Speed | Up to 300 mm/s (printer-dependent) |
Duty Cycle | Continuous (industrial-grade durability) |
Interface Type | Flexible PCB (FPC) connector |
Connector Pin Count | 14–16 pins (verify with printer manual) |
Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
Material | Ceramic substrate, wear-resistant coating |
Lifespan | ~100–150 km (varies with media and usage) |
Weight | Approx. 80–100g |

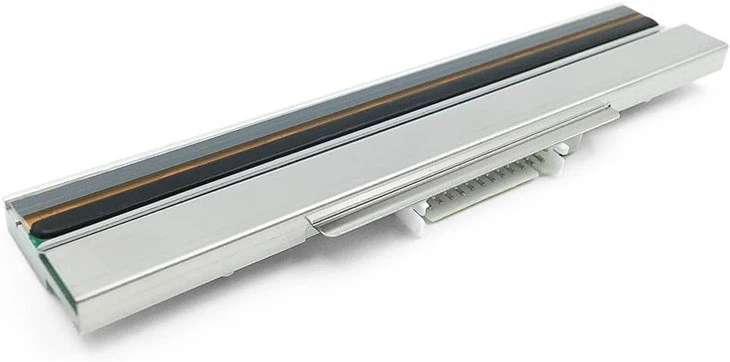

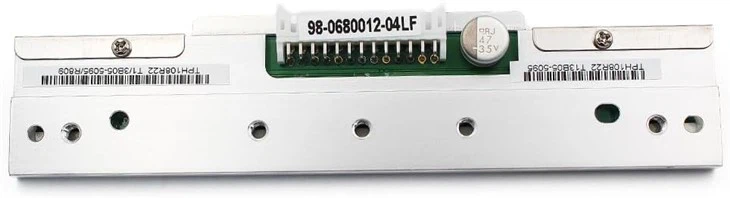

TSC MB240 MF2400 Thermal Printer Assy 203dpi Genuine 98-0800022-01LF
SKU:
TSC MB240 MF2400 Thermal Printer Assy 203dpi Genuine 98-0800022-01LF
Categories: PrintHead, Printhead for TSC
TSC THERMAL PRINTER HEAD
COMPATIBILITY:for TSC MB240 MF2400 Series Printer
RESOLUTION:203dpi
P/N:98-0800022-01LF
₹9,999.00
Out of stock
Out of stock
