| ​Parameter | ​Specification |
|---|---|
| ​Model Compatibility | TSC TTP-245, TC200, TC210 |
| ​Print Technology | Direct Thermal/Thermal Transfer |
| ​Resolution | 8 dots/mm (203 dpi) |
| ​Print Width | 104mm (4.09 inches) |
| ​Dot Count | 832 dots (8×104mm) |
| ​Dot Resistance | 100-200Ω (typical) |
| ​Voltage Requirement | 24V DC (±10%) |
| ​Current Draw | 1.0-1.2A (peak) |
| ​Max Print Speed | 300mm/s |
| ​Duty Cycle | 24/7 operation capable |
| ​Connector Type | FPC (Flexible Printed Circuit) |
| ​Pin Configuration | 14-16 pin (varies by model) |
| ​Operating Temp Range | 0°C to 50°C (32°F to 122°F) |
| ​Storage Temp Range | -20°C to 60°C (-4°F to 140°F) |
| ​Construction | Ceramic substrate with protective coating |
| ​Service Life | 100,000-150,000 print cycles |
| ​Weight | 85-95g |
Sold out

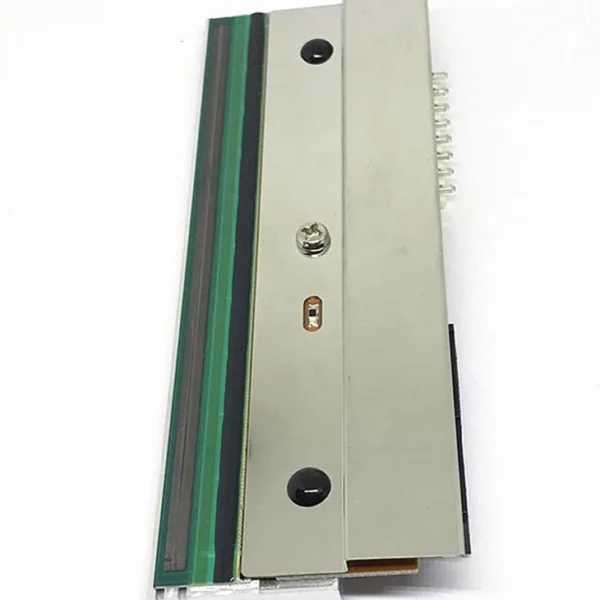

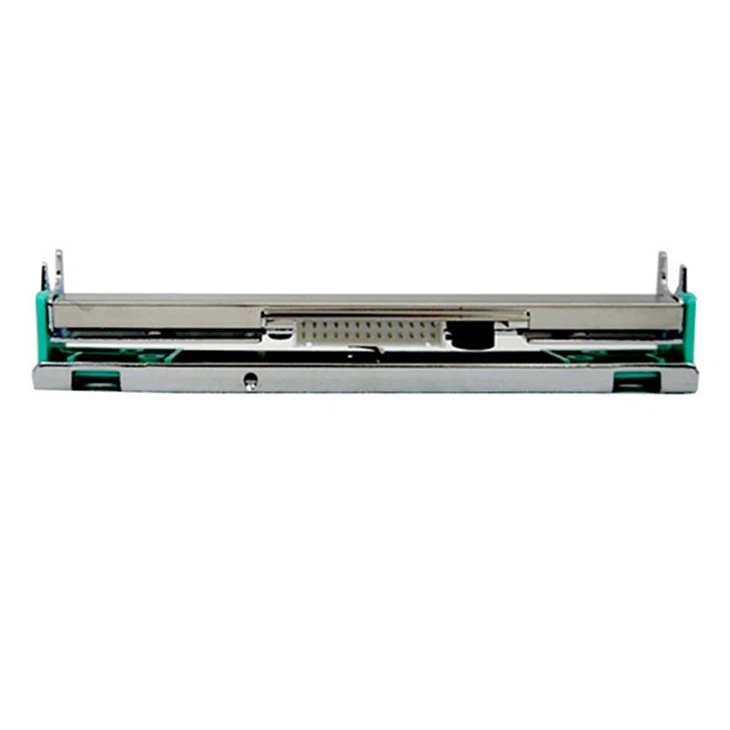

Print Head Tsc Model TTP-245/TC200/TC210 203dpi
TSC THERMAL PRINTER HEAD
COMPATIBILITY:for TSC TTP-245 Series Printer
RESOLUTION:203dpi
₹9,999.00
Out of stock
Out of stock
